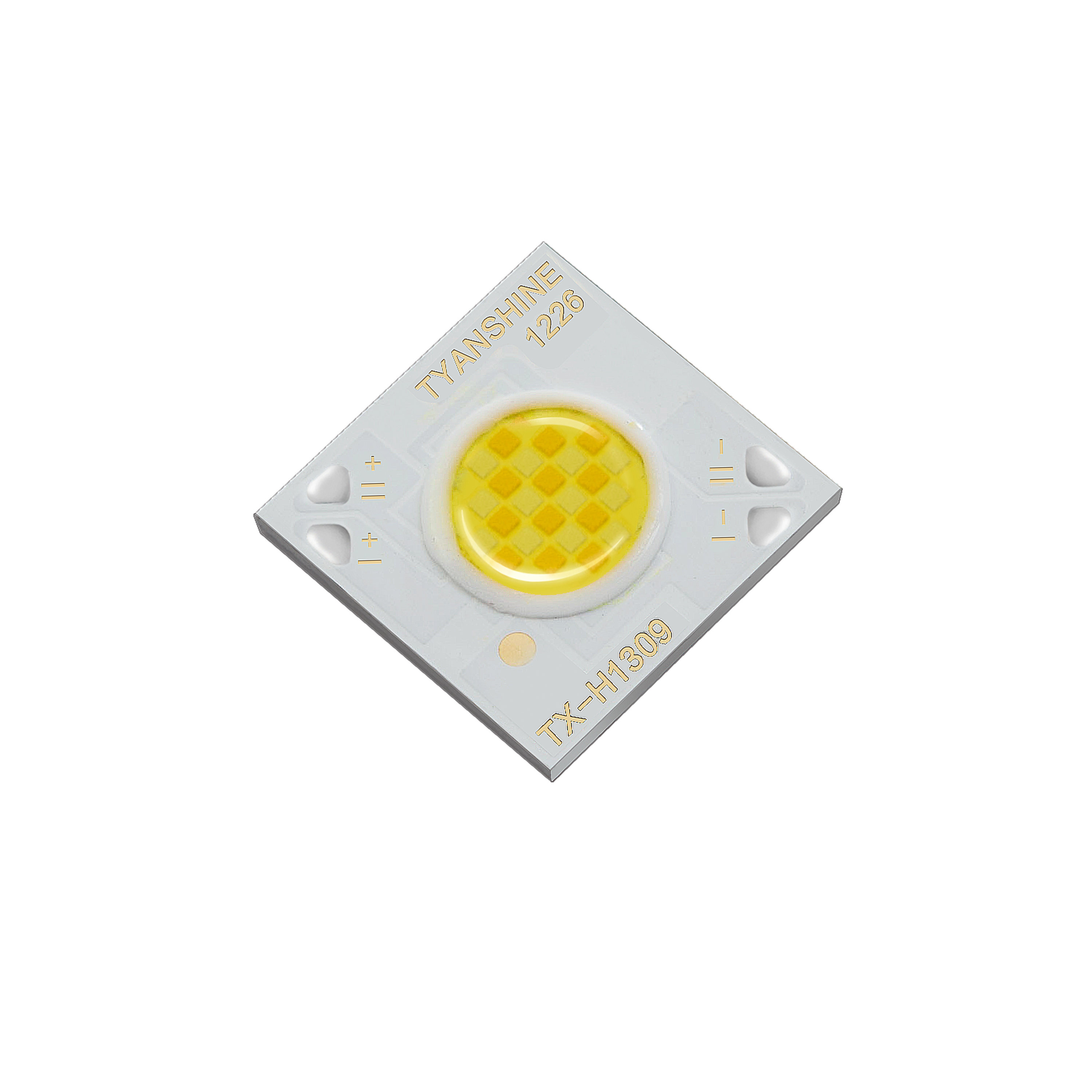

TX-H1309

Home Products New Product Release

Product Features

· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· Fast thermal conductivity substrate, lower resistance
· Compatible cob pkg size

Application Area

Commercial lighting
Hotel lighting
Museum lighting
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 250 450
Forward Voltag V 34 36
Thermal Resistance K/W 1.62
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 780-980 90 250
II:5700 900-1200 90 250
I:2700 650-850 95 250
II:5700 800-1000 95 250
