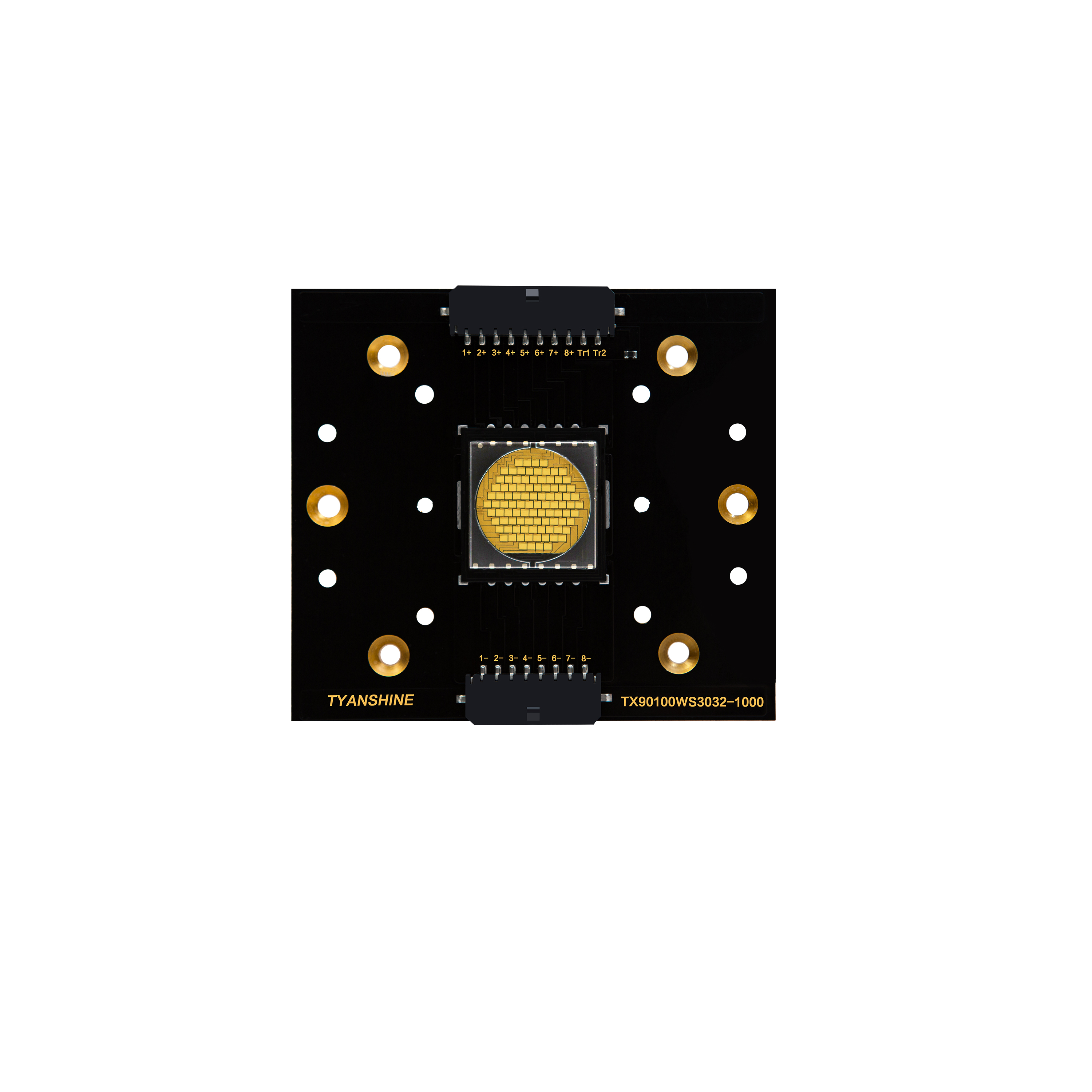

90100W1000/WS500

Home Products New Product Release

Relevant attachments

Product Features

· Compact LES with high light density, up tp 5W/mm2
· Latest advanced phosphor technology, high color consistency
· Tunable white, good performance of CCT mixing · Thermal-electic isolation copper substrate, safe & stable, easy assembling

Application Area

Outdoor spot light
Follow spot light
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle degree 120
DC Forward Current mA 3500*8 3800*8
Forward Voltag V 33 39
Thermal Resistance K/W 0.023
Typ. Spec 1000W white
CCT(K) Lumen(Lm) Ra Current(mA)
6500-8500 80000-90000 70 3500*8
6500-7000 60000-75000 90 3500*8
Typ. Spec Bi-color
CCT(K) Lumen(Lm) Ra Current(mA)
6000-6500 30000-35000 90 3500*4
2700-2870 25000-29000 90 3500*4
