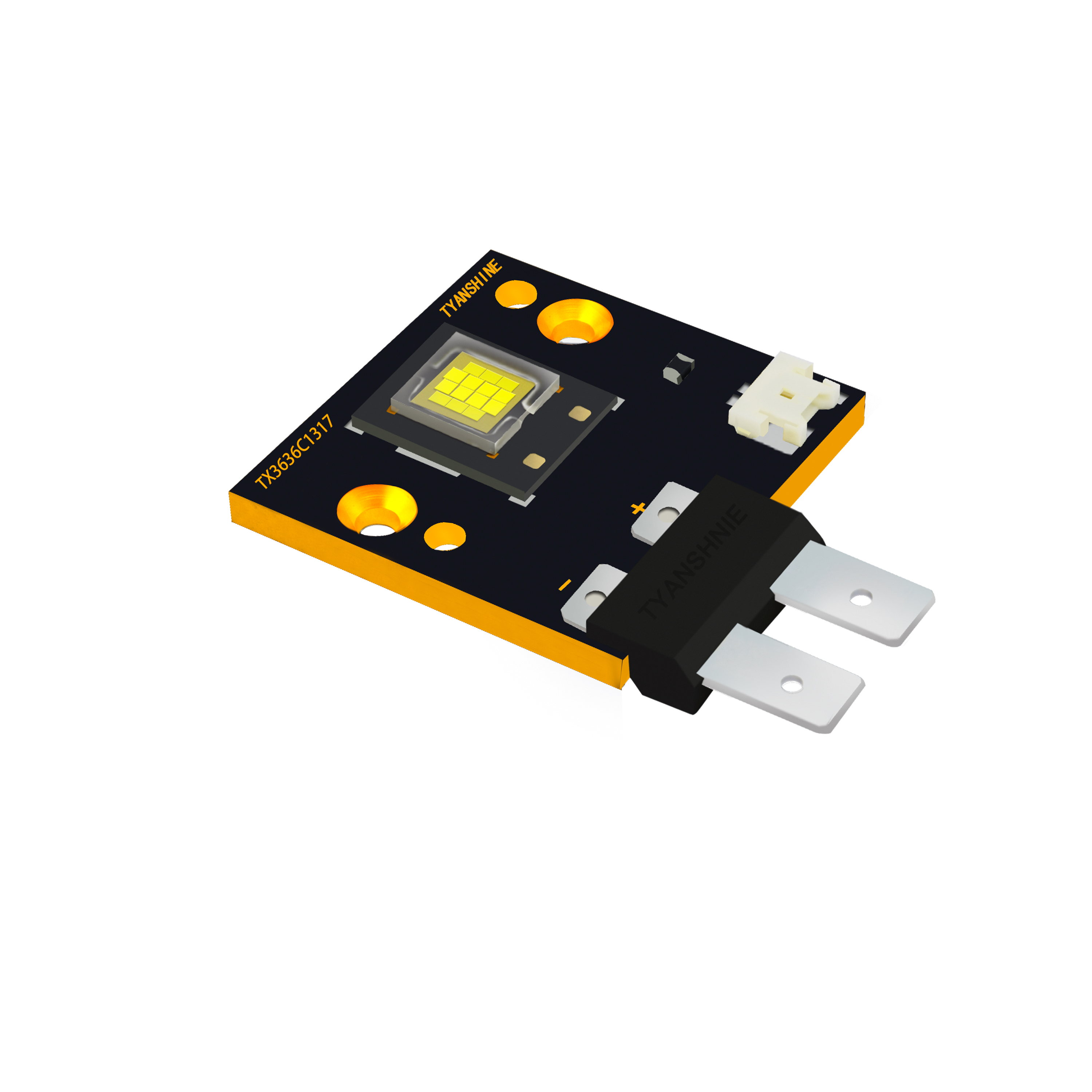

3636W 230W high power LED module

Home Products Product Center

Product Features

· Compact LES with high light density, up tp 8W/mm2
· Latest advanced phosphor technology, high color consistency
· Thermal-electic isolation copper substrate, safe & stable, easy assembling

Application Area

Entertainment lighting
Architectural lighting
Medical illumination, Fiber Optics
Event lighting
Stage lighting Projection
Searchlight
RoHS REACH
Characteristics Unit Typical Maximum
Viewing Angle Degree 120
DC Forward Current mA 4600 5000
Forward Voltag V 42 44
Thermal Resistance K/W 0.12
Typ. spec
CCT(K) Lumen(Lm) Ra Current(mA)
6500-8500 15000-18000 80 4600
