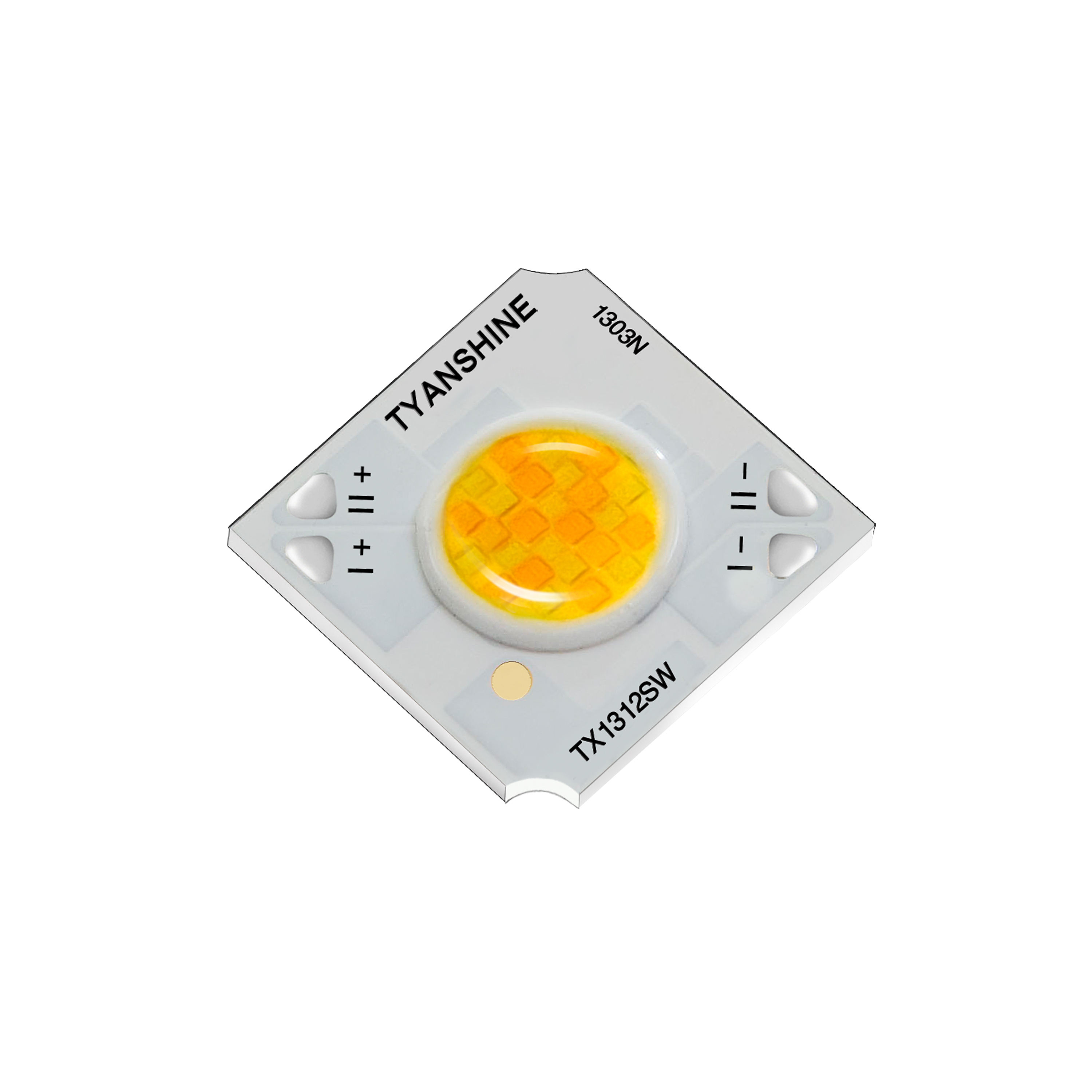

TX-1312SW

Home Products Product Center

Product Features

Tunable White Cob
· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· Wide CCT Range

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 250 400
Forward Voltag V 37 39
Thermal Resistance ℃/W 3.7
Light Emitting Surface
 mm Φ7.5
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 750-900 90 250
II:6000 900-1200 90 250
