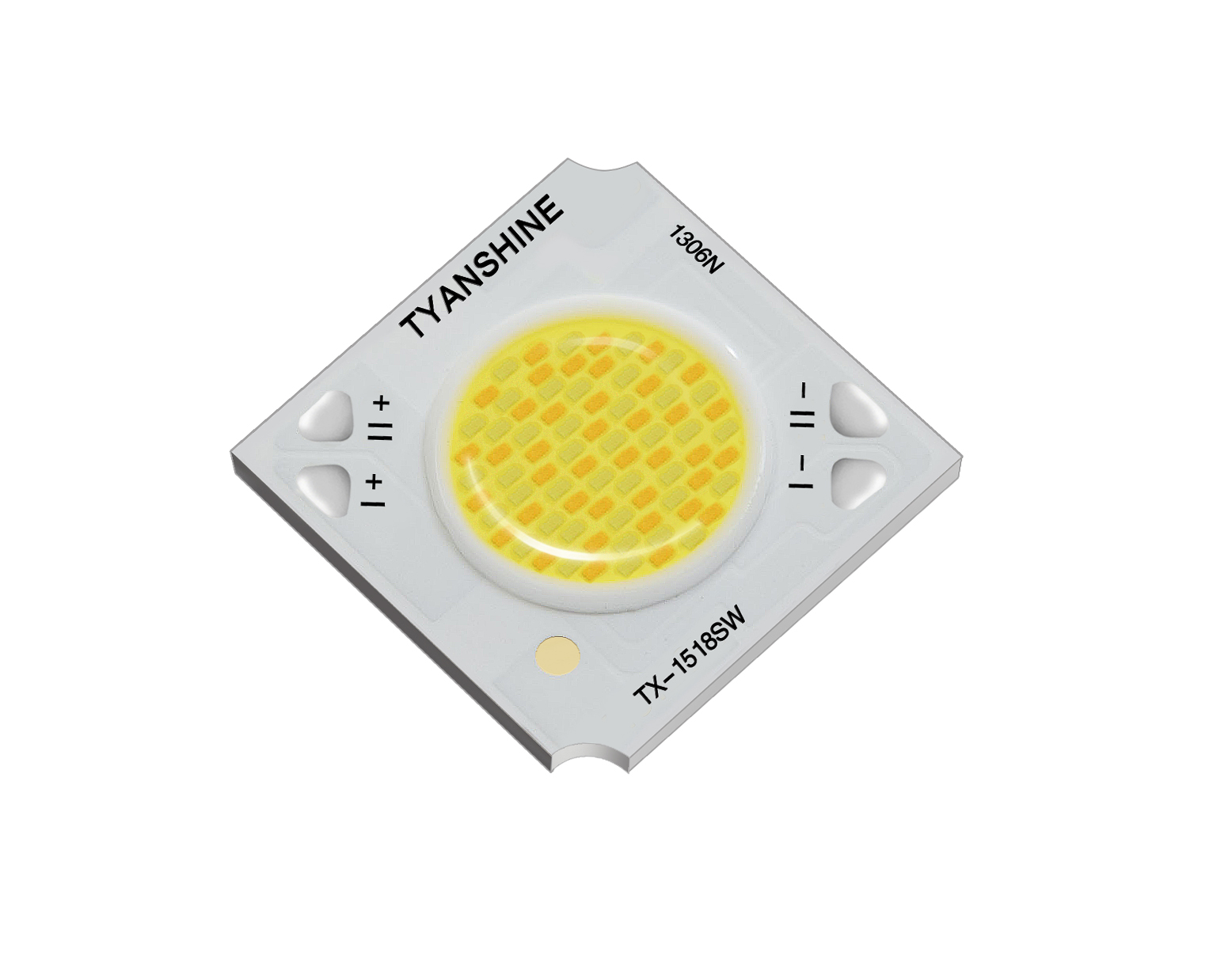

TX-1518SW

Home Products Product Center

Product Features

Tunable White Cob
· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· 3000-5000K / 2700-6000
· CCT Customizable

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 350 500
Forward Voltag V 37 39
Thermal Resistance K/W 1.7
Light Emitting Surface mm Φ10.5
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 1100-1300 90 350
II:6000 1400-1700 90 350
I:3000 1100-1300 90 350
II:5000 1300-1600 90 350
