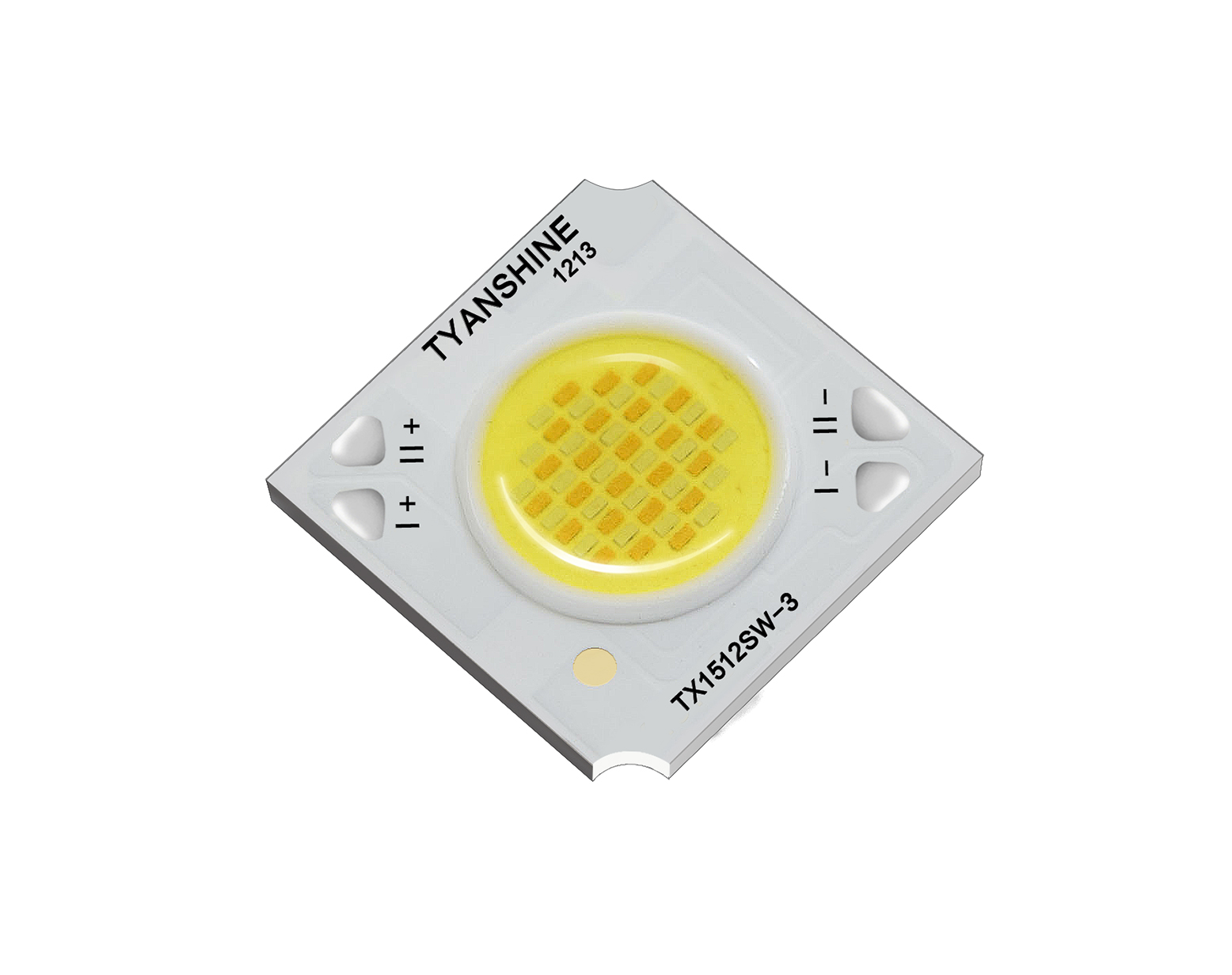

TX-1512 12-15W

Home Products Product Center

Product Features

Tunable White Cob
· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· CCT Customizable

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 350 400
Forward Voltag V 33 37
Thermal Resistance K/W 1.04
Light Emitting Surface
m Φ10.5
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 1200-1600 80 350
II:6000 1400-1800 80 350
I:2700 900-1200 90 350
II:6000 1100-1500 90 350
