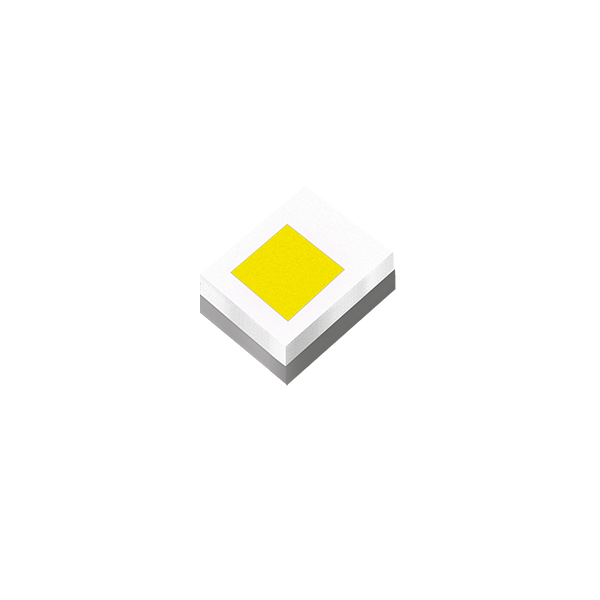

TX2016（R/G/B/C/L/A/W）8

Home Products Product Center

Product Features

Ceramic eutectic package, extremely small internal stress and excellent thermal channel
Flip chip coating package, uniform and stable lumen output
The single light source uses a large power, providing high quality and high lumen output

Application Area

Ourdoor lights
Automotive lights

RoHS REACH

Typ. Spec
Color DWL(nm) Lumen(lm) Current(mA) Voltage(V) Ra
Red 620-625 125-155 2500 2.3-2.7 /
Green 522-532 220-300 2500 2.8-3.2 /
Blue 450-455 32-45 2500 2.8-3.2 /
Cyan
 498-505 90-125 2500 2.8-3.2 /
Lemon 4060-4280L 340-420 2500 2.75-3.25 /
Amber 1770-1850K 180-225 2500 2.75-3.25 /
White 6300-7800K 200-250 2500 2.75-3.25 95
Warm white 2850-3130K 200-280 2500 2.75-3.25 80
Warm white 2550-2800K 150-185 2500 2.75-3.25 95
