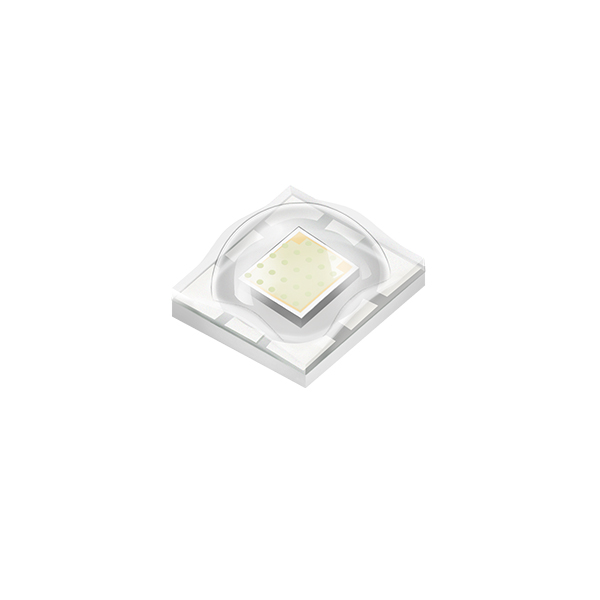

TX2020（R/G/B/L/A/C/W）3

Home Products Product Center

Product Features

· Ceramic PKG, eutectic-bonding, thermal-electric isolation, fast heat conductivity
· Less Relative expansion coefficient, stable, good air-tightness for tough conditions
· Excellent color mixing effect

Application Area

Outdoor Landscape illumination & Architectural lighting
Liner light, wall-washer, flood light
Under-ground and under water light

RoHS REACH

Typ. Spec 3W
Color DWL(nm) Lumen(lm) Current(mA) Voltage(V) Ra
Red 620-625 65-80 1000 2.0-2.6 /
Green 525-535 130-155 1000 2.8-3.4 /
Blue 450-460 18-30 1000 2.8-3.4 /
Lemon 4060-4280L 155-185 1000 2.75-3.25 /
Amber 1770-1900K 100-125 1000 2.75-3.25 /
White 5500-6800K 145-170 1000 2.75-3.25 /
Neutral white 3780-4300K 130-160 1000 2.75-3.25 80
Warm white 2860-3130K 122-148 1000 2.75-3.25 80
