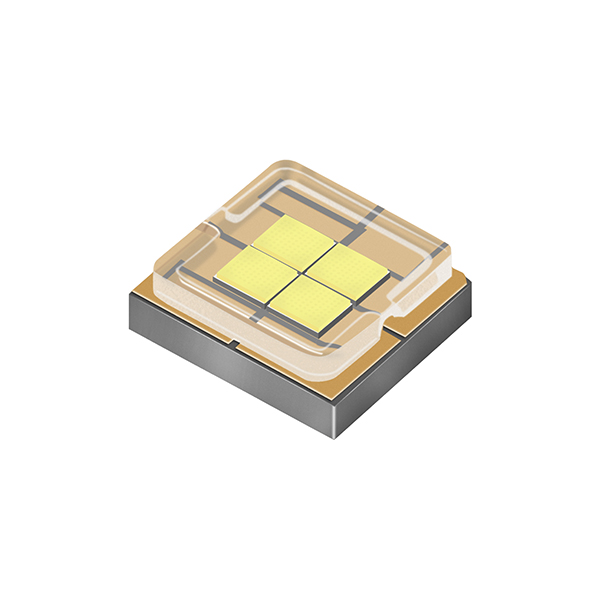

TX6065W60

Home Products Product Center

Product Features

· Compact power LEDs, Individual quad chips
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity

Application Area

Stage lighting,Outdoor lighting
Special lighting
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 120
DC Forward Current mA 4000*4 5000*4
Forward Voltag V 3.0 4.0
Thermal Resistance ℃/W 0.6

Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
7250-9000 3800-4500 70 4000*4
