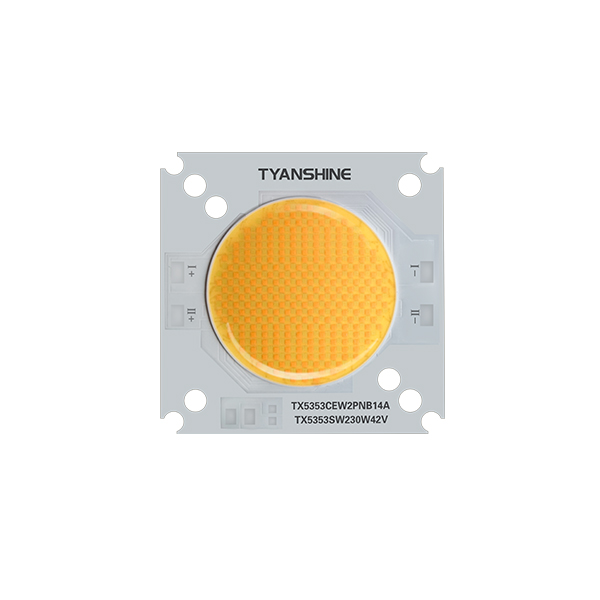

TX5353SW230/330

Home Products Product Center

Product Features

Tunable White Cob
· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· CCT Customizable

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights

RoHS REACH 5353W230
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 5500 6000
Forward Voltag V 39 44
Thermal Resistance K/W 0.1
Light Emitting Surface mm Φ30
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
2700 15500-18500 95 5500
7000 21000-25000 95 5500

RoHS REACH 5353W300
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 6500 7000
Forward Voltag V 48 53
Thermal Resistance K/W 0.1
Light Emitting Surface mm Φ36
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
2700 22000-26000 95 6500
7000 29000-34000 95 6500
