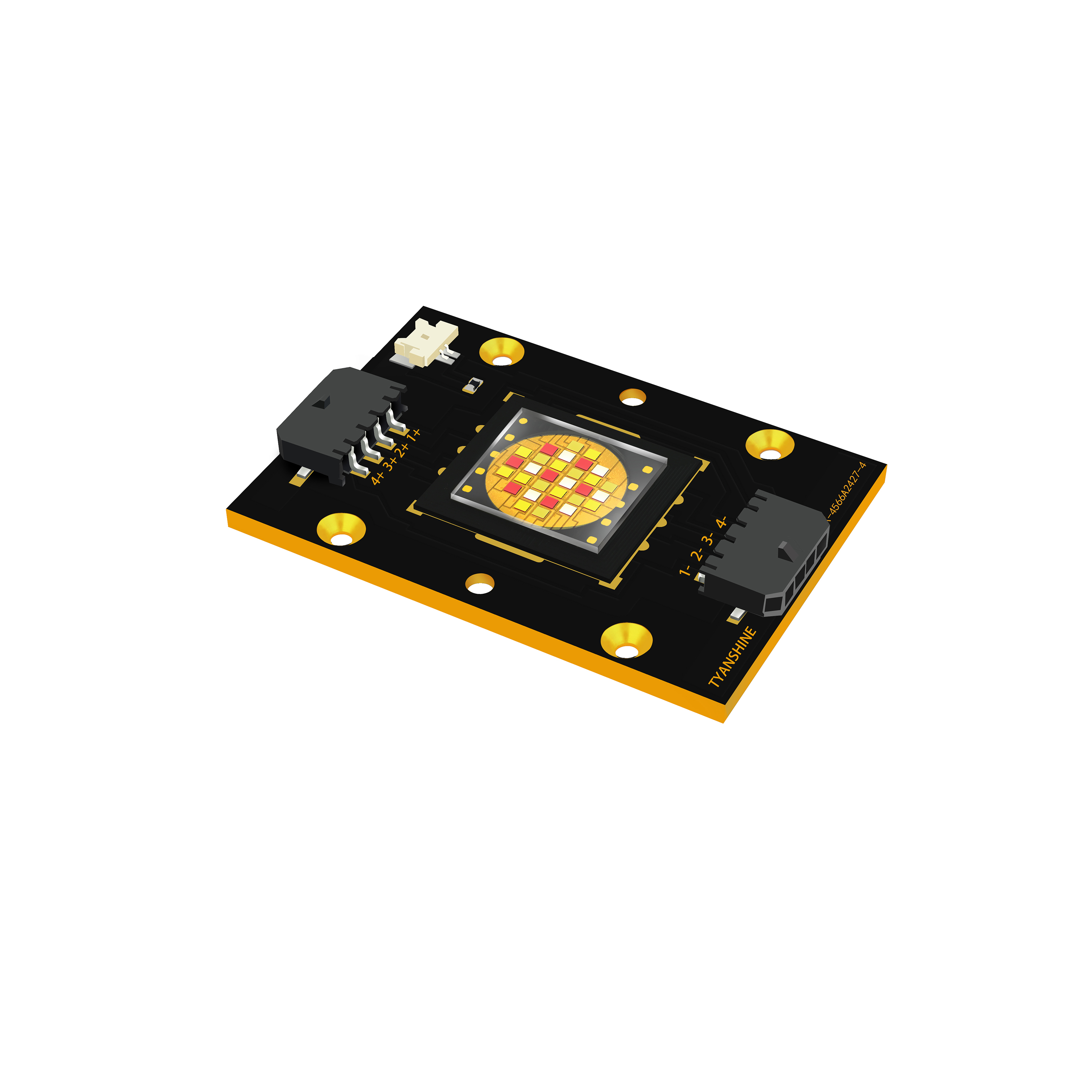

4566RGBLA 150W RGB+Lemon+PC Amber LED module

Home Products Product Center

Product Features

Compact LES with high light density, upto 5W/mm2
Latest advanced phosphor technology, high color consistency
Thermal-electric isolation copper substrate, safe & stable
Intersecting distribution of 5 colors, optimized color-mixing

Application Area

Moving head light
Spot light
Profile light
RoHS REACH
Typ. Spec
Color DWL(nm) Lumen(lm) IF=1500mA Current(mA) Voltage(V) Thermal Resistance(K/W)
Red 618-628 850-1050 1800 14-16 0.47
Green 520-530 1750-2050 1800 22-24 0.47
Blue 450-460 220-300 2400 11-13 0.47
Lemon 565-569 2200-2700 2000 20-22 0.47
Amber 1840-1965K 1500-1800 2000 20-22 0.47
